Large capacity industrial beef jerky dehydrator

Packaging:
Wooden packing
Supply Ability:
10 Set/Sets per Month
Port:
Shanghai

Product Description

Large capacity industrial beef jerky dehydratorLarge capacity industrial beef jerky dehydratorLarge capacity industrial beef jerky dehydratorLarge capacity industrial beef jerky dehydratorLarge capacity industrial beef jerky dehydratorLarge capacity industrial beef jerky dehydratorLarge capacity industrial beef jerky dehydratorLarge capacity industrial beef jerky dehydratorLarge capacity industrial beef jerky dehydratorLarge capacity industrial beef jerky dehydratorLarge capacity industrial beef jerky dehydratorLarge capacity industrial beef jerky dehydratorLarge capacity industrial beef jerky dehydrator Technical parameters

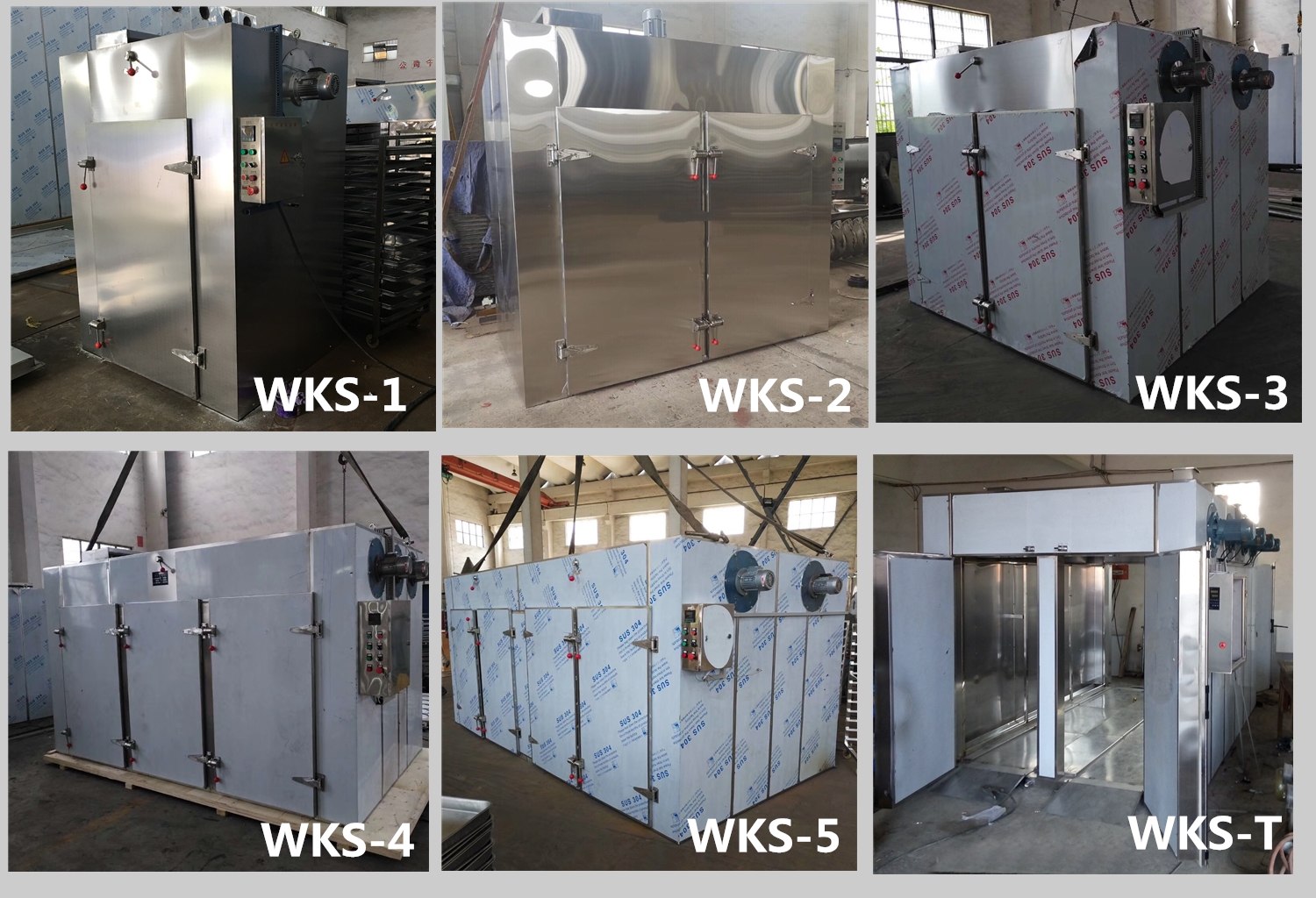

MODEL

ELECTRIC POWER
(kW)

FAN POWER
(kW)

TRAY
QTY.

TRAY AND RACK
SIZE
(mm)

RACK
QTY.

DIMENSION
(mm)

WEIGHT
(kg)

MATERIAL

WKS-1

6~9

0.45

24

640*460*45
950*700*1300

1

1400*1200*2000

400

304 stainless steel

WKS-2

9~15

0.45

48

2

2300*1200*2000

600

WKS-3

15~30

0.9

96

4

2300*2200*2000

900

WKS-4

15~45

1.35

144

6

3660*2300*2000

1500

WKS-5

15~60

1.8

192

8

5000*2250*2100

2000

The heat source can be electricity, gas, steam, thermal oil, etc.

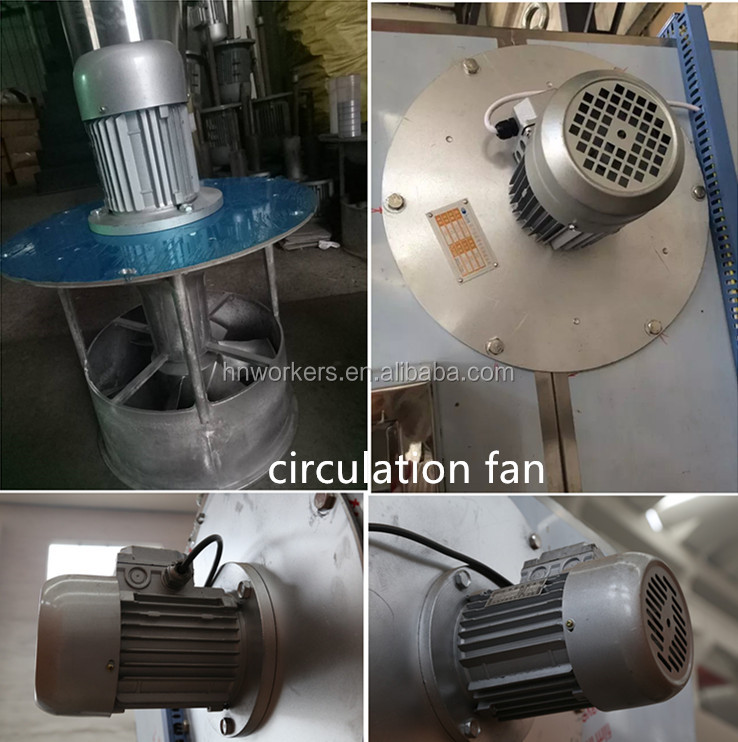

  Working principleHot air circulating drying oven applies a low-noise and high-temperature proof axial flow blower and an automatic temperature control system which is fully sealed, making that the heat efficiency of the drying oven increases from 3-7% of traditional oven to 35-45% of the present one, the highest heat efficiency can reach 50%.WKS series special drying oven adopts the axial flow fan, with the automatic constant temperature control system. Its thermal efficiency is more than 95%, which uses electricity as a heating source and adopts a convective heat transfer method to heat the air by axial flow fan and heat exchanger. Fresh air from the air inlet supplement, waste damp is out from the dehumidification system.  Constantly add fresh air and discharge damp to keep the correct relative humidity in the oven. The biggest characteristic of this series of drying oven is that most hot air is cycling in the cabinet, the entire cycle is closed, so as to enhance the heat transfer, saving the energy.Large capacity industrial beef jerky dehydrator
 Main features1. Most of the hot air inside the loop, high thermal efficiency, energy conservation2. The use of forced ventilation box with adjustable air divider plate, uniform drying, the heat source can be steam, oil, electricity, hot water, far infrared and so on3. Small machine noise, running balance, the temperature automatically controlled, easy installation and maintenance4. Applicable to a wide range, can be used for drying various materials and is a versatile drying equipment ApplicationWidely used for heating, solidification, and dehydration of pharmacy, chemical, food, light industry, heavy industry materials and products, such as raw material medicine, medicine, Chinese Herbal Medicine, powders, granules, pill bottles, pigments, dyes, dehydrated vegetables, dried fruit, sausages, plastic resin, electric elements, drying varnish and so on.Packaging & ShippingLarge capacity industrial beef jerky dehydrator Our ServicesLarge capacity industrial beef jerky dehydrator Company InformationHenan Workers Machinery Co., Ltd. (hereinafter referred to as WKS), established for more than 10 years, is committed to the research, manufacturing, and sales of various industrial drying machines, fruits & vegetables, and food processing machines, also one of the earliest manufacturers involved in industrial drying equipment in China. WKS has a modern standard workshop, covering over 2,000 square meters; WKS more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences. WKS mainly manufactures industrial microwave dryer, hot air circulation dryer, multi-layer belt hot air dryer, vibratory fluidized bed drying equipment, spray dryer and other fruits & vegetables and food processing machines; all of our products are made of high-quality stainless steel with mature product design and sophisticated production technology. Therefore, high-quality products have much easier access to a good market reputation and share. Our products are exported to dozens of countries such as the United States, Canada, Britain, France, Australia, South Korea, India, Singapore, Thailand, Malaysia, Sri Lanka, Brazil, Russia, Uzbekistan, Romania, Croatia, Latvia, Sweden, Nigeria, and South Africa, etc.WKS believes in customer-oriented business and "quality first" philosophy, so WKS focuses on providing customers with high quality, competitive prices, and wholehearted services. Welcome to visit us to start the cooperation!
