High Efficient Foodstuff Conveyor Mesh Belt Dryer Green Barley Dehydrator Drying Machine

Packaging:
Wooden case(furmigation free) or as per customers' requirments
Supply Ability:
10 Set/Sets per Month
Port:
Every port in China

Product Description

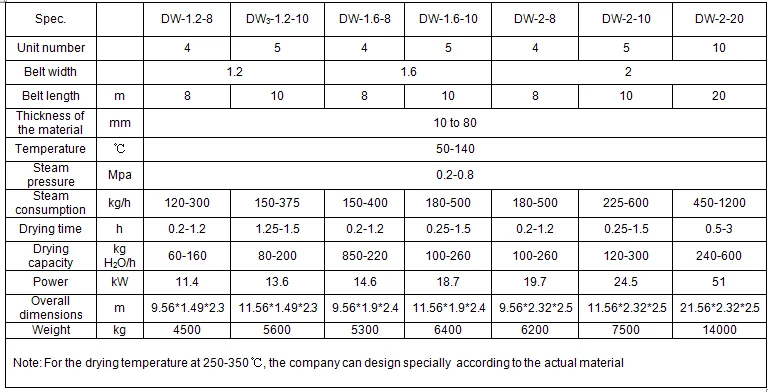

High Efficient Foodstuff Conveyor Mesh Belt Dryer Green Barley Dehydrator Drying  Machine  High Efficient Foodstuff Conveyor Mesh Belt Dryer Green Barley Dehydrator Drying MachineTechnical parameterProduct IntroductionMulti-layer belt hot air circulation dryer is a continuous drying equipment of batch production.Widely used for flakes, strips, granular materials with better permeability, especially for dehydrated vegetables and Chinese medicine pieces with high water content but does not allow high temperature;Heat source can be gas, coal, steam, biomass, oil, electricity and so on. High Efficient Foodstuff Conveyor Mesh Belt Dryer Green Barley Dehydrator Drying MachineHigh Efficient Foodstuff Conveyor Mesh Belt Dryer Green Barley Dehydrator Drying MachineWorking principle1.Drying technology Description:
Vegetable or fruit or other material is sent by conveyor to feeding inlet and continuously spread evenly to the upper transmission belt , upper belt forwards through heating section and transfers to the second layer belt …… Finally dried material is discharged from outlet to complete the drying process.2.Features:
(1) Hot air from bottom-up and top-down crosses through material, increasing the contact area between the hot air and the material, improving drying speed.
(2) At the bottom of the inner cavity fully welded with rounded corners, so there will be no unorganized airflow with the outside world in working condition, ensuring convenient cleaning and no water inside the equipment and the cleanliness of each drying items.
(3) It is equipped with mandatory dehumidification device , most hot air are recycled to save energy, part of the hot and humid air is discharged from chamber to ensure product quality.
(4) Adopting fully enclosed structure, in addition to de-humidity duct, it has no outer duct, ensuring that material is not contaminated, improving the thermal efficiency and working conditions.
(5) Adopting unique internal air supply device, can not only improve the relative velocity of material and hot air, improve drying speed, and also guarantee uniform drying.
(6) Hot air inlet is built-in in the center, and a specially crafted filter is set in the air inlet of the heater, not only filtering the fine powder and debris, but also can ensure that the heater is internally clean; there is also an access door on one side , which is easy to access and clean.
(7) Dryer has multiple layers, the material can be rolled over from the top layer to down layer.
(8) Belt speed adopts frequency adjustment, can effectively control material requirements.
(9) All air inlet is equipped with the filter to ensure clean air intake .
(10)All circulation fan are centrifugal fan with high wind pressure, large air volume, low energy consumption and high air penetration rate.
(11)Heat preservation: 50mm insulation with mineral wool material
(12) Material: hot air tube, circulation duct, air valve are made of stainless steel, double exhaust pipes is carbon steel. Main Features1. Suitable for large-scale, low-drying-rate and difficult-to-dry materials;
2. Can be designed into different forms according to the drying characteristics of raw material
3. This kind of drying machine is characteristic of high speed,fast evaporation, good product quality, compact structure, small footprint, simple operation, easy maintenance, stable operation; The paste materials are better to be dried after granulation or in strip forms.
4. The material is placed on the conveyor in a stationary state and will not be damaged so as to achieve good quality, the material gets the same drying time to
nsure consistent color and even moisture.High Efficient Foodstuff Conveyor Mesh Belt Dryer Green Barley Dehydrator Drying MachineApplication1. Widely used in metallurgical additives, chemical, food, packaging and other fields.2. Used in drying sheet, strip, granular materials with good ventilation .3. Particularly suitable for dehydrated vegetables, catalysts, Chinese Herbal Medicine and other material with high moisture content  High Efficient Foodstuff Conveyor Mesh Belt Dryer Green Barley Dehydrator Drying MachineHigh Efficient Foodstuff Conveyor Mesh Belt Dryer Green Barley Dehydrator Drying MachineHigh Efficient Foodstuff Conveyor Mesh Belt Dryer Green Barley Dehydrator Drying MachineHigh Efficient Foodstuff Conveyor Mesh Belt Dryer Green Barley Dehydrator Drying MachineHigh Efficient Foodstuff Conveyor Mesh Belt Dryer Green Barley Dehydrator Drying MachineHigh Efficient Foodstuff Conveyor Mesh Belt Dryer Green Barley Dehydrator Drying Machine Packaging & ShippingHigh Efficient Foodstuff Conveyor Mesh Belt Dryer Green Barley Dehydrator Drying Machine Our ServicesOne-year warranty, 24-hour hot-line service, complete components & parts are ready for supply anytime.
The company has a full-time after-sales service team, they are from the manufacturing staff who understand the operation of the equipment very well, they will solve all problems encountered by customers, and provide you with timely maintenance and use recommendations.Company InformationHenan Workers Machinery Co., Ltd, established for over ten years, gained extensive experience in design and production of various drying machines applied in different industries and food processing equipment (both complete processing lines and individual machines) and packaging machines tailored to your precise needs.
With worldwide sales on five continents, WKS brand is among the world’s leading providers of drying machines and food processing equipment technology.

With her innovative engineers, well trained technicians, wide knowledge and long- standing experience, WKS serves its customers in each phase of the production.

WKS not only designs and manufactures each machine, but also assembles, operates, trains and carries technical responsibilities of every delivered equipment.

To ensure hygiene, durability and ease of maintenance, WKS uses the most advanced technology and materials. Whether you require a simple conveyor or high-tech automated equipment, WKS can supply the most suitable machine for your application. Instant supply of in-stock spare parts ensures your machinery serviced in the shortest time possible.FAQQ1: Who is Henan Workers Machinery Co,. Ltd?
A: Henan Workers Machinery  Co,. Ltd is a manufacturing and trade enterprise engaged in drying, food processing and packaging industries with over ten years’ experience.Q2: What are your main products?
A: Our main products are Industrial Drying Machine (Hot air circulation drying machine/Microwave drying machine/Vacuum drying machine/spray drying machine/vibrating fluid bed drying machine, etc.), Food Processing Machine (cleaning/washing, pitting, peeling, slicing and grinding machine, etc.) and Packaging machine.Q3: What certificates do you have for your products?
A: All products are manufactured strictly complying with ISO9001: 2015, main certificates are CE, FCC, GOST, etc.Q4: What is the warranty of your products?
A: 1 year. All spare parts are free during this period, but you have to bear the airfare.Q5: Can you introduce your company's after - sales service team?
A: 24-hour hot-line service, complete components & parts are ready for supply anytime.
The company has a full-time after-sales service team , they are from the manufacturing staff who understands the operation of the equipment very well, they will solve all problems encountered by customers, and provide you with timely maintenance and use recommendations.Q6: What is the delivery time?
A: Normally 5 to 7 working days after receiving the balance payment.Q7: What is the terms of payment?
A: T/T, PayPal, West Union, E-checking, Credit Card, etc.
