Electronica Automatic Microwave Dryer for Drying Black Soldier Fly Larva Meal Worms

Packaging:
Wooden Case( with fumigation free)
Supply Ability:
20 Set/Sets per Month
Port:
Every port in China

Product Description

Electronica Automatic Microwave Dryer for Drying Black Soldier Fly Larva Meal WormsElectronica Automatic Microwave Dryer for Drying Black Soldier Fly Larva Meal Worms  Technical parameter

NO.

Model

Microwave frequency

(MHz)

Microwave power

(kW)

Voltage

(V/Hz)

Belt width

(m)

Microwave leakage

(mw/cm2)

Dimension

(mm)

Weight

(kg)

1

WKS-BLM-12

2450±50

12

380/50

0.75

 ≤1

6000*1100*1700

1000

2

WKS-BLM-15

2450±50

15

380/50

0.75

 ≤1

6000*1100*1700

1000

3

WKS-BLM-20

2450±50

20

380/50

0.75

 ≤1

8000*1100*1700

1200

4

WKS-BLM-30

2450±50

30

380/50

0.75

 ≤1

8000*1100*1700

1500

5

WKS-BLM-40

2450±50

40

380/50

0.75

 ≤1

8000*1100*1700

2000

6

WKS-BLM-45

2450±50

45

380/50

0.75

 ≤1

8000*1100*1700

2000

7

WKS-BLM-50

2450±50

50

380/50

0.75

 ≤1

8000*1100*1700

2000

8

WKS-BLM-60

2450±50

60

380/50

1.1

 ≤1

10000*1500*1700

2500

9

WKS-BLM-80

2450±50

80

380/50

1.1

 ≤1

10000*1500*1700

2500

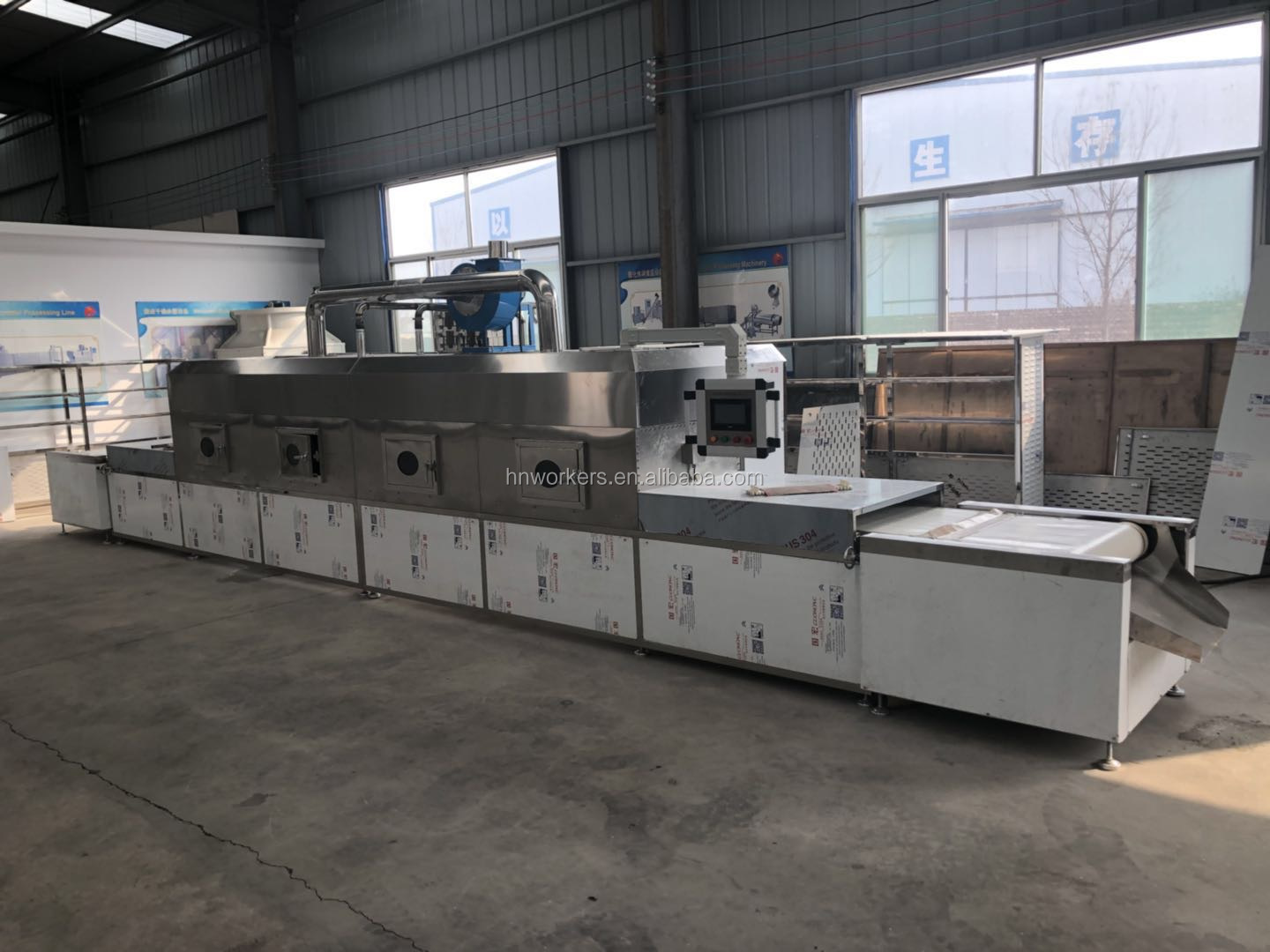

 Introduction Microwave is electromagnetic wave with the frequency of 300MHz ~ 300GHz.  Microwave frequency is higher than normal radio frequency, often referred to as UHF electromagnetic wave. Microwave as an electromagnetic wave also has wave-particle duality. Electronica Automatic Microwave Dryer for Drying Black Soldier Fly Larva Meal WormsThe basic properties of microwave usually appear as penetrating, reflecting, absorbing.For glass, plastic and porcelain, microwave is penetrating and will not be absorbed. For water and food, microwave will be absorbed, thus resulting self-heating. For metal things, they will reflect microwave.Belt Microwave drying machine processes products on the conveyor belt with high handling capacity. Electronica Automatic Microwave Dryer for Drying Black Soldier Fly Larva Meal WormsWorking principleMicrowave drying is such a drying method that material absorbs microwave energy which can be converted into heat, so that the material has an overall heating both internally and externally at the same time and it is completely different from other conventional drying methods. Electronica Automatic Microwave Dryer for Drying Black Soldier Fly Larva Meal WormsElectronica Automatic Microwave Dryer for Drying Black Soldier Fly Larva Meal WormsElectronica Automatic Microwave Dryer for Drying Black Soldier Fly Larva Meal WormsConventional drying method is based on the principle of heat conduction, convection and radiation which transfer heat from external to internal, inevitably there is a temperature gradient in the material, therefore, heating is uneven and there may result in local overheating. Microwave drying technology is different from the conventional drying method, which is by means of high frequency reciprocating motion of the dipolar molecule of the material, resulting in internal friction heat which heats material, without any heat transfer process, and the material is heated both internally and externally at the same time with high speed drying and uniform drying result, and energy consumption is far less than traditional heating.Electronica Automatic Microwave Dryer for Drying Black Soldier Fly Larva Meal WormsMain features1, High handling capacity, continuous processing, labor saving;2, Energy efficient and drying time is short. Microwave is a direct effect on the material, there is no additional heat loss, so thermal efficiency is very high and drying time is very short, saving 30% electric power compared with far infrared heating.3, Easy to control, advanced technology. Compared with the conventional method, the equipment is ready to use; no thermal inertia, flexible and convenient operation; microwave power and transmission speed adjustable. During microwave heating and drying, no waste water, no waste gas, it is a safe and harmless high-tech.4, Mildew-proof, sterilization, preservation: microwave drying functions with thermal effects and biological effects, can achieve mildew-proof and sterilization at lower temperature. High speed and short time drying maximize the preservation of the activity of the material and food vitamins, the original color and nutrients.5, Selective heating. Water molecules are best at absorbing microwave; therefore, high water content part absorbs more microwave power than low water content part. This is the characteristics of selective heating through which uniform heating and drying can be achieved.Electronica Automatic Microwave Dryer for Drying Black Soldier Fly Larva Meal WormsElectronica Automatic Microwave Dryer for Drying Black Soldier Fly Larva Meal WormsApplication

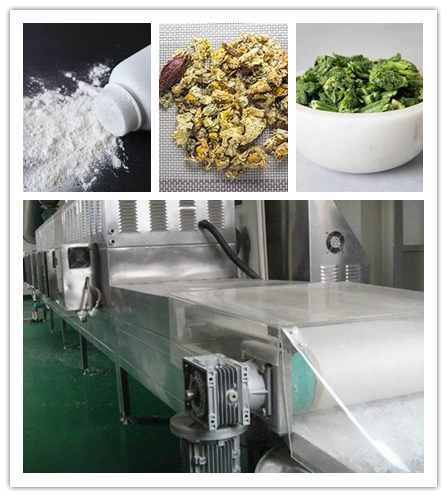

Microwave drying, sterilization, heating, preservation, extraction, synthesis, puffing, thawing and sintering equipment have been widely used in leather, wood, color printing, food, spices, chemicals, pharmaceuticals, tobacco, building materials, ceramics, paper, rubber and medical fields.Characteristic of fast speed, energy saving, high production efficiency, uniform drying, clean production, easy to achieve automatic control and improve product quality and so on.Electronica Automatic Microwave Dryer for Drying Black Soldier Fly Larva Meal Worms  Packaging & ShippingElectronica Automatic Microwave Dryer for Drying Black Soldier Fly Larva Meal Worms Our Services Company Information
