Microwave vacuum dryer dehydrator drying machine
- Packaging:
- Wooden case
- Supply Ability:
- 200 Set/Sets per Year
- Port:
- Shanghai
Product Description

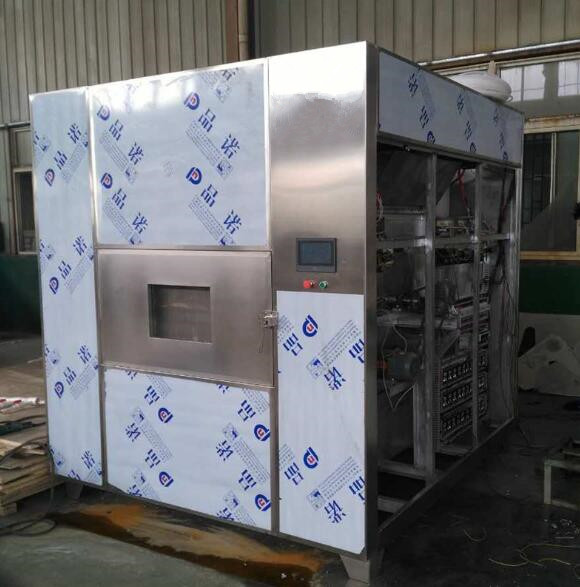

Microwave vacuum dryer dehydrator drying machine
Product Description

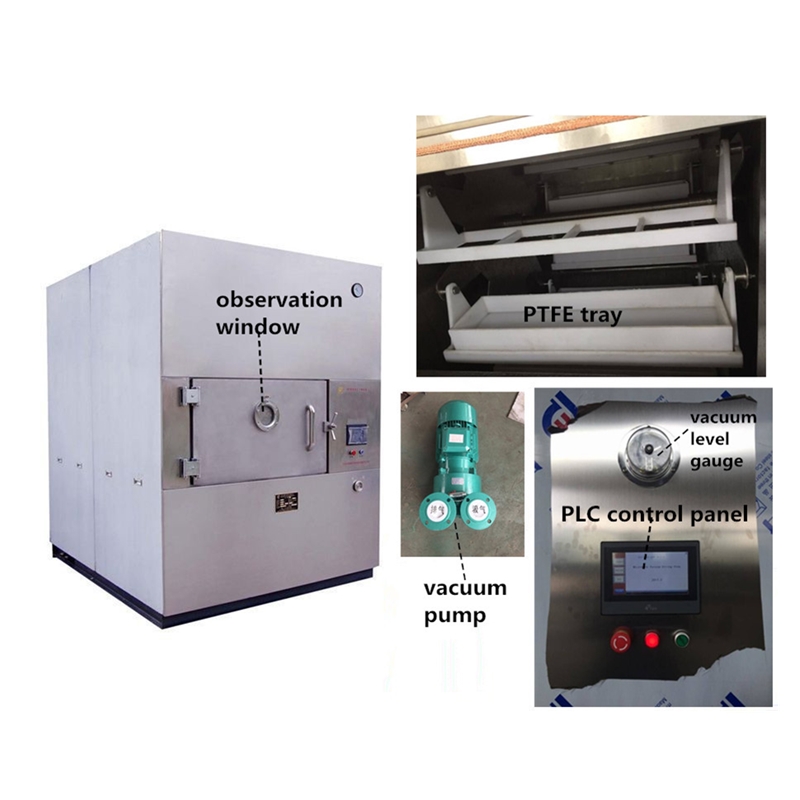

INTRODUCTION AND WORKING PRINCIPLE Batch type microwave vacuum dryer is a new technology using microwave drying material at low temperature, vacuum and oxygen-barrier conditions, with a fast-drying, high efficiency, and energy-efficient features. Under negative pressure, microwave can dry the material quickly by reducing the boiling point of water. Batch type microwave vacuum dryer uses intermittent operation mode, with tray bearing material, artificial loading & unloading material, simple operation, accurate temperature control. Microwave Field Density can be adjusted automatically according to the drying degree of material. At the same time, Batch type microwave vacuum dryer can set various programs according to different variety of materials production processes, at the same time optimize production to achieve real intelligent control.
ADVANTAGE 1. High stability Independent R&D and manufacturing of core components, continuous operation is stable and reliable. Drying fast, uniform, the nutritional composition and color is not affected in a vacuum environment, 2. High Intelligence Embedded control systems, a key to start, data available online and wireless transmission. It doesn't need preheating, doesn't depend on the artificial experience, saves time and effort. 3. Strict safety standards Air load protection, prevention of microwave leakage ( GB ). Controlled by PLC, temperature, speed, and other parameters can be set, and then stored in PLC, achieved one key to boot and a key off in production. 4. Fine manufacturing process Adopting imported equipment manufacturing; electrical components by pouring welding process. Microwave heating, raw material is heated evenly, and the cavity environment is not heated, no heat loss.
APPLICATION 1.The flavorings spice, 2.Subsidiary agricultural products, deep processing products of fruit, vegetable 3.Various dried meat, like beef, pork, chicken,duck, fish, etc. 4.The grain, the deep manufactured products 5.Sterilization of beverage and the wine, the meat, the marine product, the roasted seeds and nuts, and etc. 6.Chemical material,medicine tablet 7.Powder for various material TECHNICAL PARAMETERS
Packaging & Shipping
Our Services
Company Information Henan Workers Machinery Co., Ltd. (hereinafter referred to as WKS), established for more than 10 years, is committed to the research, manufacturing, and sales of various industrial drying machines, fruits & vegetables, and food processing machines, also one of the earliest manufacturers involved in industrial drying equipment in China. WKS has a modern standard workshop, covering over 2,000 square meters; WKS more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences. WKS mainly manufactures industrial microwave dryer, hot air circulation dryer, multi-layer belt hot air dryer, vibratory fluidized bed drying equipment, spray dryer and other fruits & vegetables and food processing machines; all of our products are made of high-quality stainless steel with mature product design and sophisticated production technology. Therefore, high-quality products have much easier access to a good market reputation and share. Our products are exported to dozens of countries such as the United States, Canada, Britain, France, Australia, South Korea, India, Singapore, Thailand, Malaysia, Sri Lanka, Brazil, Russia, Uzbekistan, Romania, Croatia, Latvia, Sweden, Nigeria, and South Africa, etc. WKS believes in customer-oriented business and "quality first" philosophy, so WKS focuses on providing customers with high quality, competitive prices, and wholehearted services. Welcome to visit us to start the cooperation! Contact us if you need more details on Vacuum Microwave Dehydration Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Vacuum Microwave Dehydrating Equipment、Vacuum Chamber. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Description
INTRODUCTION AND WORKING PRINCIPLE Batch type microwave vacuum dryer is a new technology using microwave drying material at low temperature, vacuum and oxygen-barrier conditions, with a fast-drying, high efficiency, and energy-efficient features. Under negative pressure, microwave can dry the material quickly by reducing the boiling point of water. Batch type microwave vacuum dryer uses intermittent operation mode, with tray bearing material, artificial loading & unloading material, simple operation, accurate temperature control. Microwave Field Density can be adjusted automatically according to the drying degree of material. At the same time, Batch type microwave vacuum dryer can set various programs according to different variety of materials production processes, at the same time optimize production to achieve real intelligent control.
ADVANTAGE 1. High stability Independent R&D and manufacturing of core components, continuous operation is stable and reliable. Drying fast, uniform, the nutritional composition and color is not affected in a vacuum environment, 2. High Intelligence Embedded control systems, a key to start, data available online and wireless transmission. It doesn't need preheating, doesn't depend on the artificial experience, saves time and effort. 3. Strict safety standards Air load protection, prevention of microwave leakage ( GB ). Controlled by PLC, temperature, speed, and other parameters can be set, and then stored in PLC, achieved one key to boot and a key off in production. 4. Fine manufacturing process Adopting imported equipment manufacturing; electrical components by pouring welding process. Microwave heating, raw material is heated evenly, and the cavity environment is not heated, no heat loss.
APPLICATION 1.The flavorings spice, 2.Subsidiary agricultural products, deep processing products of fruit, vegetable 3.Various dried meat, like beef, pork, chicken,duck, fish, etc. 4.The grain, the deep manufactured products 5.Sterilization of beverage and the wine, the meat, the marine product, the roasted seeds and nuts, and etc. 6.Chemical material,medicine tablet 7.Powder for various material TECHNICAL PARAMETERS | Microwave vacuum dryer | |||||
| Model type | WKS-MV-6 | WKS-MV-9 | WKS-MV-12 | WKS-MV-20 | WKS-MV-30 |
| Voltage | 380V/50Hz/3P | ||||
| Frequency | 2450±50MHz | ||||
| Magnetron Power | 1kW/set | ||||
| Vacuum Degree | -0.084~-0.091MPa | ||||
| Output Power | 6kW | 9kW | 12kW | 20kW | 30kW |
| Overall Size | 1.45*1.2*1.7m | 1.45*1.2*1.7m | 1.6*1.3*1.7m | 2.0*1.6*1.7m | 2.3*2.0*1.7m |
| Magnetron Cooling | Air cooling or water cooling | ||||
| Operation Method | PLC touch screen control and operation | ||||
| Material | SS304, thickness with 11mm | ||||
| Microwave Leakage | ≤1mW/cm² | ||||
| Vacuum Pump | 1.8kW | 2.2kW | 4.5kW | 5.5kW | 7.5kW |
| Safety Device | 1, Fault alarm system; 2, Safety warning designs; 3, Limit switches. | ||||
| Control system | PLC control with touch screen, Temperature, Time, Microwave power are adjustable | ||||
Our Services
Company Information Henan Workers Machinery Co., Ltd. (hereinafter referred to as WKS), established for more than 10 years, is committed to the research, manufacturing, and sales of various industrial drying machines, fruits & vegetables, and food processing machines, also one of the earliest manufacturers involved in industrial drying equipment in China. WKS has a modern standard workshop, covering over 2,000 square meters; WKS more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences. WKS mainly manufactures industrial microwave dryer, hot air circulation dryer, multi-layer belt hot air dryer, vibratory fluidized bed drying equipment, spray dryer and other fruits & vegetables and food processing machines; all of our products are made of high-quality stainless steel with mature product design and sophisticated production technology. Therefore, high-quality products have much easier access to a good market reputation and share. Our products are exported to dozens of countries such as the United States, Canada, Britain, France, Australia, South Korea, India, Singapore, Thailand, Malaysia, Sri Lanka, Brazil, Russia, Uzbekistan, Romania, Croatia, Latvia, Sweden, Nigeria, and South Africa, etc. WKS believes in customer-oriented business and "quality first" philosophy, so WKS focuses on providing customers with high quality, competitive prices, and wholehearted services. Welcome to visit us to start the cooperation! Contact us if you need more details on Vacuum Microwave Dehydration Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Vacuum Microwave Dehydrating Equipment、Vacuum Chamber. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : Microwave drying machine > Microwave vacuum drying and sterilization machine
