Fluid Bed Dryer Fluid Bed Drying Equipment Competitive Price with High Quality Gas Steam Electricity Dehydration Custom 380V WKS
- Packaging:
- Wooden case or loaded into container
- Supply Ability:
- 5 Set/Sets per Month
- Port:
- Shanghai
Product Description

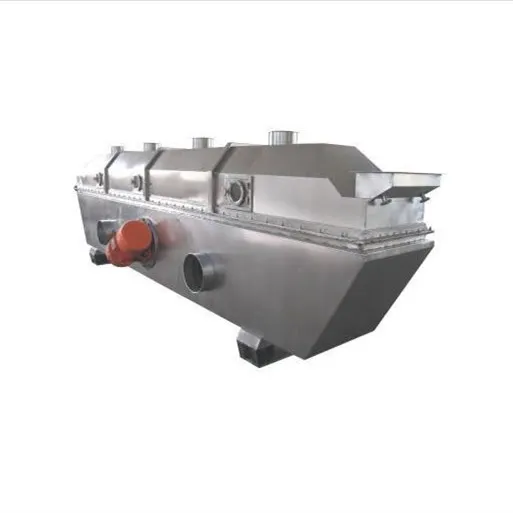

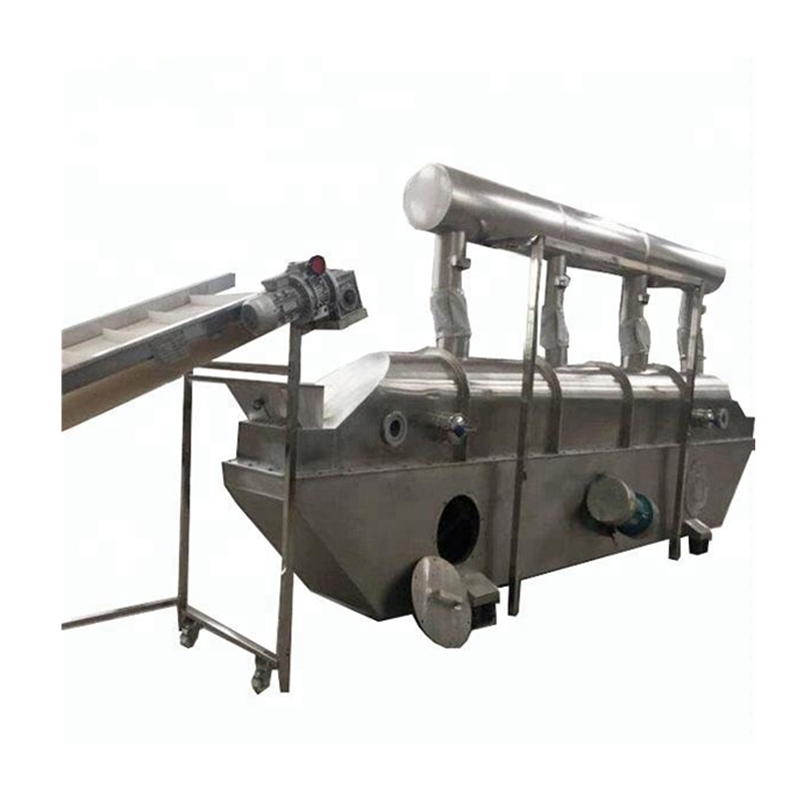

Product Description WKS series of vibration fluid bed dryer is a continuous drying equipment for non-sticky particles. Its working principle is: cold air is filtered through the filter, and then goes into the heater, and is heated to a certain temperature, then hot air is distributed into the lower bed via multiple inlets and flows up through perforated plate of the bed. Material goes evenly into the bed through screw feeder, under the action of the vibration force, the material moves up forward continuously along the horizontal direction, while undergoes heat exchange with the hot air coming up from bottom, the moisture of material is evaporated rapidly, and the wet air is discharged from the exhaust fan, and the material is fully dried and discharged from the discharge port. Technical parameters

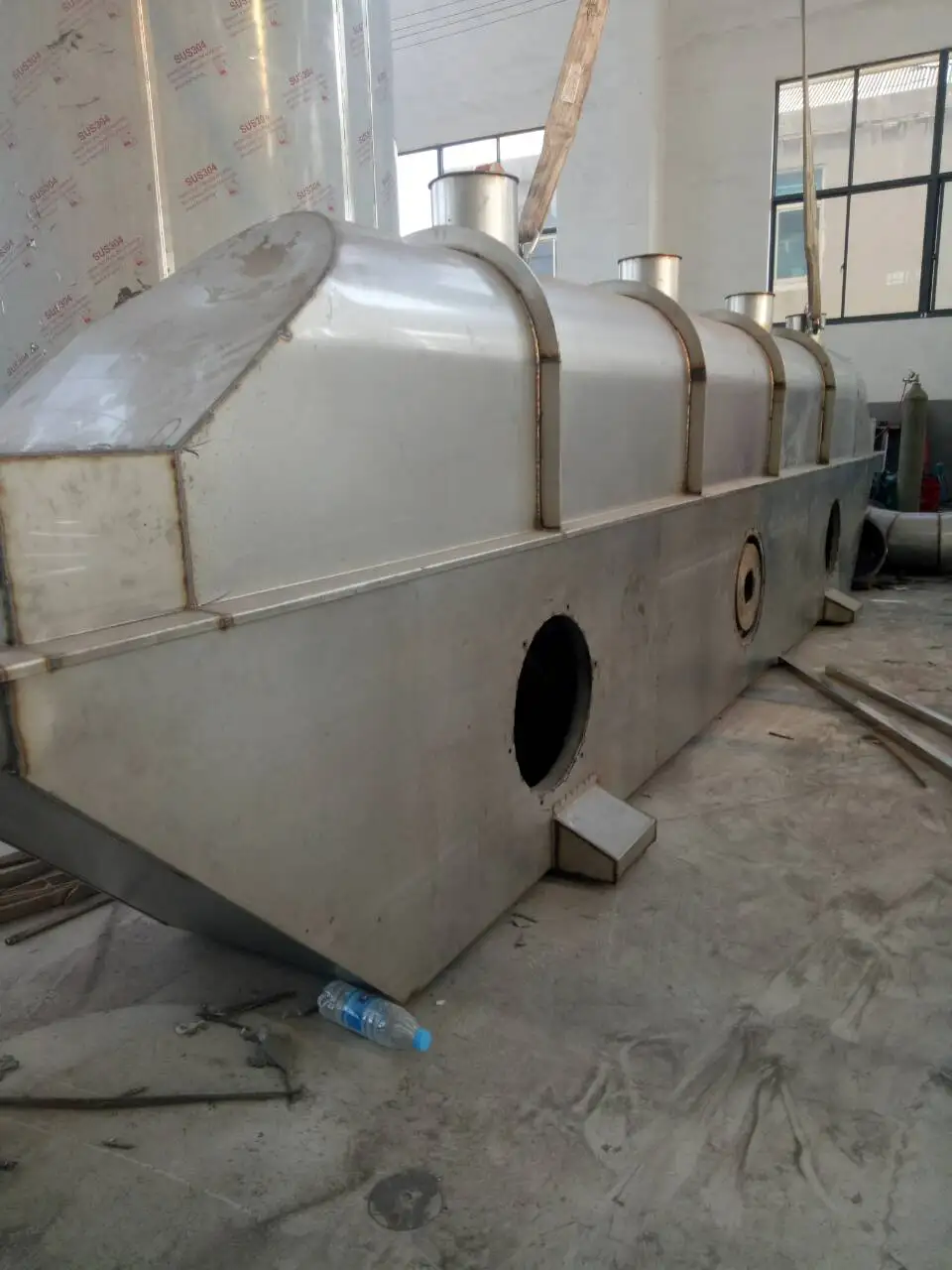

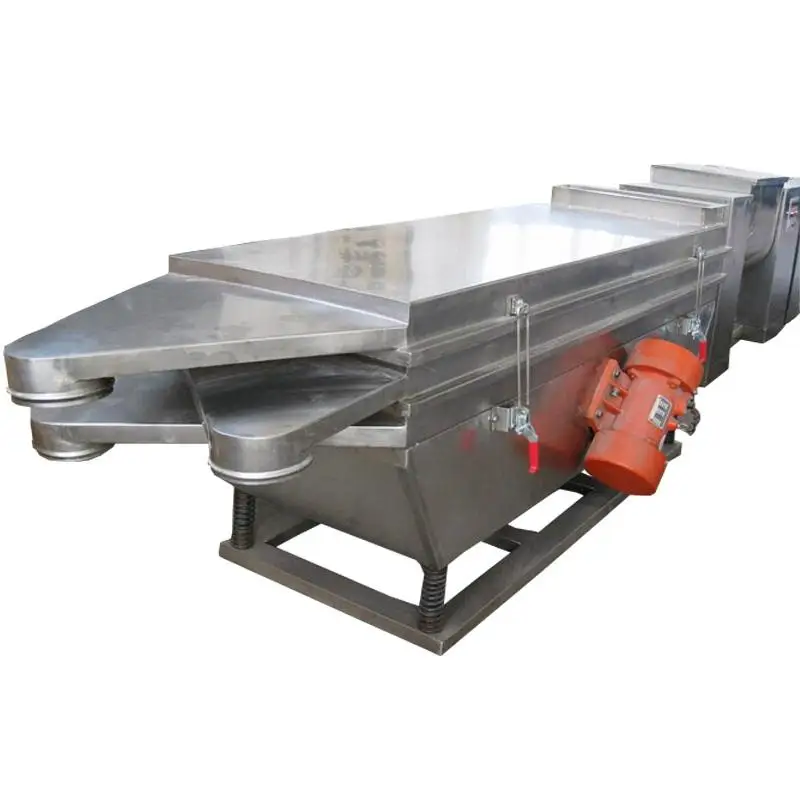

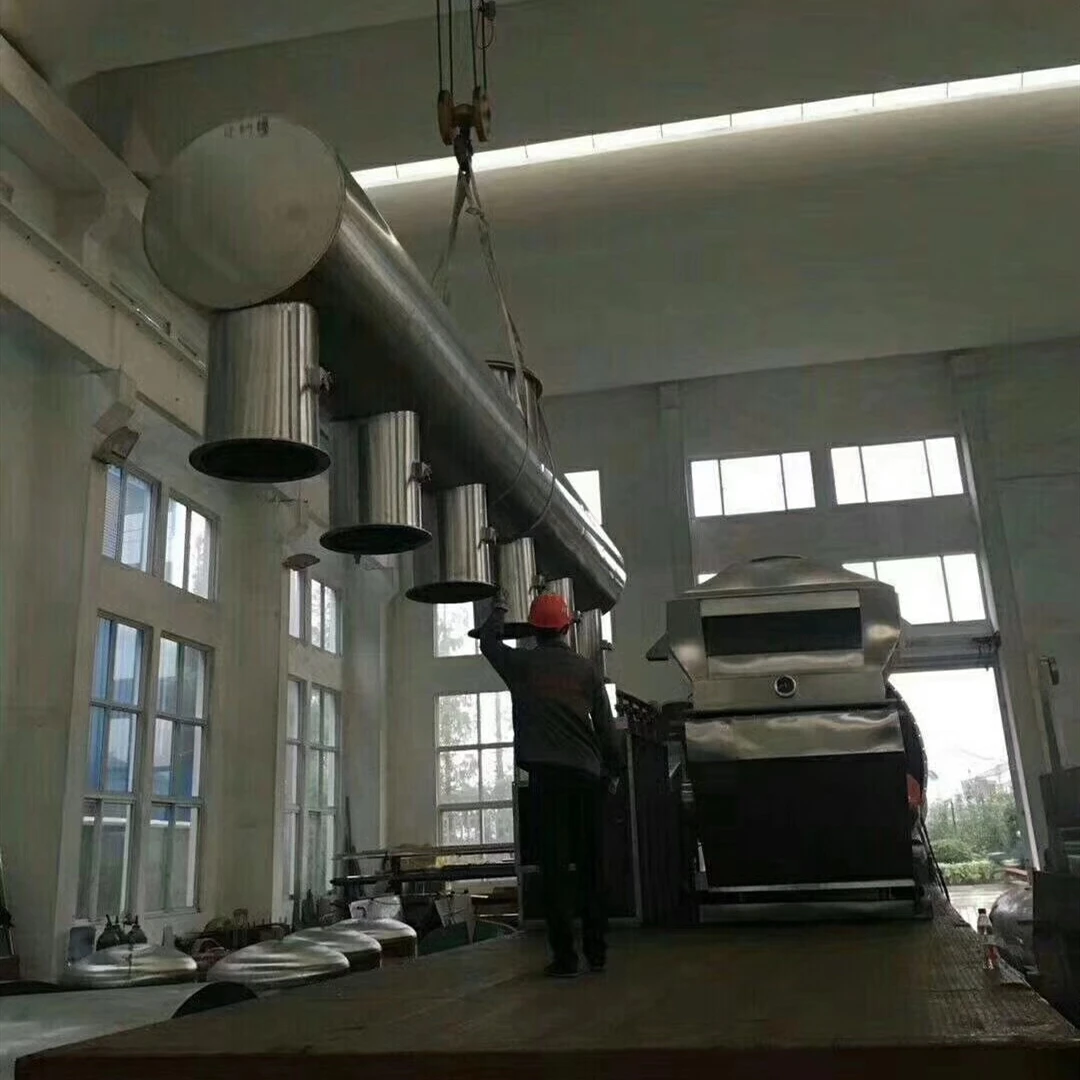

ApplicationIndustrial vibration fluidized bed dryer applicable to chemical, pharmaceutical, food, dehydrated vegetables, food, minerals and other industries powder, granular materials, dry, cooling and other operations.Such as: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, radish, silk, soybean meal, lees, seeds, slag, sugar. Features1. high quality, made of food grade stainless steel2. continuous drying results in high yield3. multiple options for heat source such as gas, steam, electricity Detailed Images The following is the manufacturing process of the fluid bed dryer Related Products PE belt conveyorUsed for feeding raw materialVibration sieveUsed for collecting final products with different size Why Choose Us Company introductionHenan Workers Machinery Co., Ltd. (hereinafter referred to as WKS), established for more than 10 years, is committed to the research, manufacturing and sales of various industrial drying machines, fruits & vegetables and food processing machines, also one of the earliest manufacturers involved in industrial drying equipment in China. WKS has a modern standard workshop, covering over 2,000 square meters; WKS more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences. WKS mainly manufactures industrial microwave dryer, hot air circulation dryer, multi-layer belt hot air dryer, vibratory fluidized bed drying equipment, spray dryer and other fruits & vegetables and food processing machines; all of our products are made of high quality stainless steel with mature product design and sophisticated production technology. Therefore, high-quality products have much easier access to a good market reputation and share. Our products are exported to dozens of countries such as the United States, Canada, Britain, France, Australia, South Korea, India, Singapore, Thailand, Malaysia, Sri Lanka, Brazil, Russia, Uzbekistan, Romania, Croatia, Latvia, Sweden, Nigeria and South Africa, etc.WKS believes in customer-oriented business and "quality first" philosophy, so WKS focuses on providing customers with high quality, competitive prices and wholehearted services. Welcome to visit us to start the cooperation! Customer Photos Contact us if you need more details on Fluidized Bed Dryer. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Vibrating Fluid Bed Dryer、Vibration Fluidized Bed Dryer. If these products fail to match your need, please contact us and we would like to provide relevant information.
Model | Area of fluid bed(㎡) | Temperature of inlet air(℃) | Temperature of outlet(℃) | Water evaporation capacity (kg/h) | Motor Power (kW) | Weight (kg) |
ZLG-3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | 0.8*2 | 1250 |
ZLG-4.5*0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8*2 | 1250 |
ZLG-4.5*0.45 | 2.025 | 70-140 | 40-70 | 50-70 | 1.1*2 | 1670 |
ZLG-4.5*0.6 | 2.7 | 70-140 | 40-70 | 70-90 | 1.1*2 | 1670 |
ZLG-6*0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5*2 | 2100 |
ZLG-6*0.6 | 3.6 | 70-140 | 40-70 | 100-130 | 1.5*2 | 2400 |
ZLG-6*0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2*2 | 2840 |
ZLG-6*0.9 | 5.4 | 70-140 | 40-70 | 140-170 | 2.2*2 | 3160 |
ZLG-7.5*0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 2.2*2 | 3200 |
ZLG-7.5*0.9 | 6.75 | 70-140 | 40-70 | 160-210 | 3.0*2 | 3600 |
